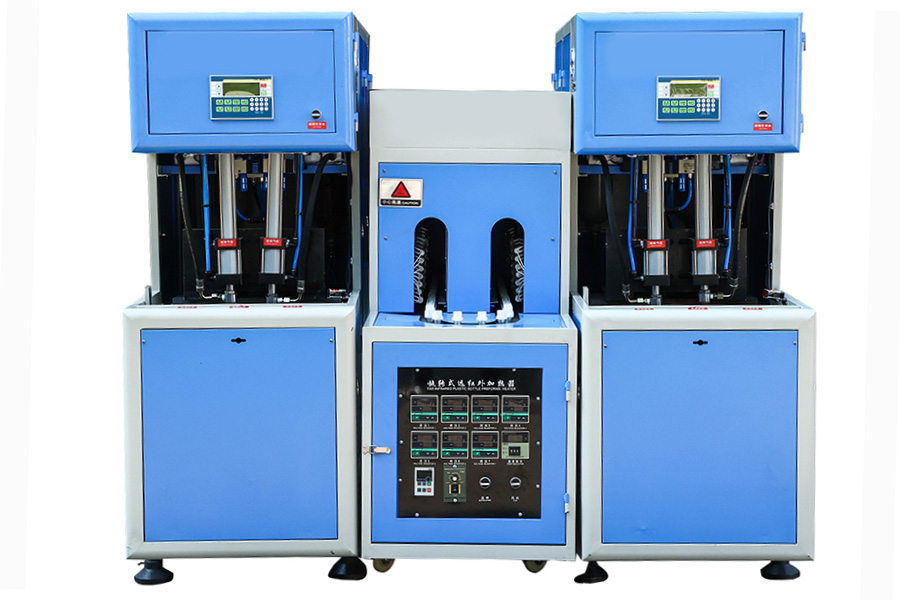

PET Semi Automatic Blow Molding Machine for 0.1-3L PET Bottle with Two-blower and One Heater

Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 30-2000ml. Like water bottle, juice bottle, carbonated drink bottle, oil bottle etc. Semiautomatic model is an economical choice for business starting. We also have different models suitable for 3-10L, 5 Gallon Bottle blow molding.

PLC

All operations and data are displayed on the same screen.Easy to operate and understand

blowing system

The blowing system is well laid out, with high quality fittings and joints chosen for longer life

clamping part

Clamping force : 100 KN

Mould opening stroke : 160 mm

The moving part of the mold is made of Japanese linear guide, which has the advantages of high rigidity and light and fast movement.

3L bottles Blow Molding Machine Semi Automatic PET Bottle Blowing Machine 4 Cavity Blow Molding Machine

Description
How to Order

TYPE	ITEM	UNIT	PARAMETER
Container	Product material	/	PET
	Container volume	L	2 (4 cavity)
	Theoretical output	PCS/H	1000-1800
	Max.container diameter	mm	115
	Max.container height	mm	360
Mouding	Max.mould plate Dimension(L*W)	mm	470*350
	Max.mould thickness	mm	220
	Clamping force	KN	100
	Mould opening stroke	mm	160
Machine size and weight	Main machine(LWH)	mm	14506001700
	Main machine weight	Kg	650
	Oven (LWH)	mm	18007001400
	Oven weight	Kg	350
	Max.heating power	kw	3-10

Machine Features:

1.Servo motor drive mode, stable performance, energy saving and high efficient,low maintenance
2.The intelligent microcomputer control system is used to ensure the accuracy and stability of the equipment operation and can be customized in French, Russian, Spanish and other operating languages
3.The machine is equipped with automatic alarm (show the cause of the alarm) and intelligent protection devices to easy maintenance and ensure safe operation
4.Non-pause rotation and constant temperature control oven to heat preforms and high speed mold clamping , saving more than 30% energy
5.Modular design saves space and effectively reduces maintenance and parts replacement costs
6.The preform is automatic loaded,the formed bottle is automatically unbottled,without manual taking bottle

Cooperated Brand:

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Frequently Asked Question

Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...

Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.

Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.

Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.

Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)

Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul

Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems

Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)

The ordering process of PET blow molding machines usually includes demand confirmation, technical negotiation, contract signing, payment arrangement, production and delivery, installation and commissioning, and after-sales service. The following are detailed steps:

PET Blow Molding Machine Ordering Process

Phase	Step	Details	Customer Action Required
1. Inquiry	Submit Requirements	Provide bottle specs (size, capacity), material (e.g., rPET), automation needs.	Fill out RFQ form or share technical specs.
	Receive Proposal	Supplier recommends machine type (1-step/2-step), configuration, and quote.	Confirm feasibility & budget.
2. Order Confirmation	Sign Contract	Finalize specs, delivery timeline, payment terms (e.g., 30% deposit).	Pay deposit (typically 30-50%).
	Approve Technical Drawings	Review/approve mold designs or samples (threads, dimensions).	Sign off or request modifications.
3. Production & Testing	Manufacturing	Machine and mold production (lead time: 45-60 days).	Pay milestone payments as scheduled.
	Factory Acceptance Test (FAT)	Witness testing (on-site/video) for output, bottle quality.	Attend or delegate inspection.
4. Delivery & Installation	Shipping	Sea/land transport (packed securely with customs documents).	Handle local logistics/clearance.
	Installation & Training	On-site setup by engineers (5-7 days); operator training.	Provide utilities (power, air, etc.).
5. Acceptance & After-Sales	Final Acceptance	Sign after trial production meets specs (1-2 years warranty).	Pay balance (10-20%).
	After-Sales Support	Lifetime tech support; free spare parts during warranty; 24/7 remote aid.	Share maintenance records.

Notes:

Customization: Special bottle designs or high-speed models may extend lead time.
Eco Options: rPET upgrades/energy-saving features must be stated in the contract.
