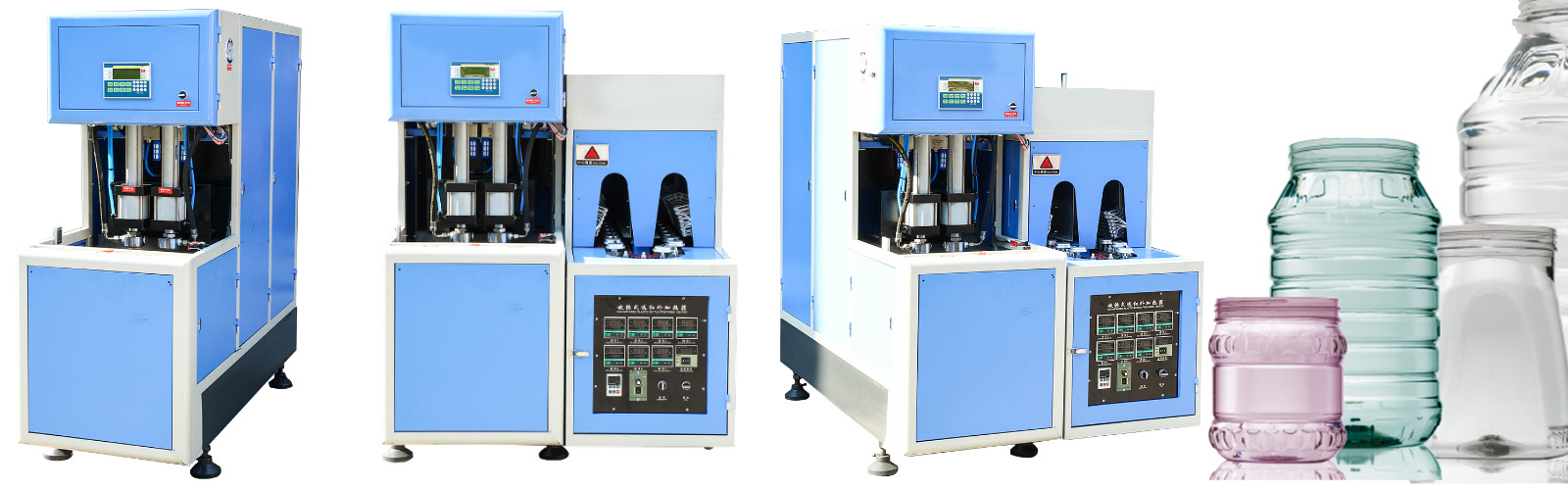

Semi Automatic 2 Cavity 3L Wide Mouth Plastic Red Dates Jar Blow Molding Machine

semi-automatic bottle blowing machine is designed and improved on the basis of a manual bottle blowing machine, meeting CE standards. Controlled by a microcomputer, the technical parameters involved can be more accurately controlled. Easy to operate, safe, only one person is required, and no special training is required. The semi-automatic bottle blowing machine can blow carbonated beverage bottles, mineral water bottles, cosmetics bottles, hot filling bottles, especially oil bottles with handles.

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.

2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.

3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.

4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.

5,Operated step-by-step and in semi-auto maode.

6,Wide-mouth jar and hot-fill bottles can also be made.

PET bottle blow molding machine 3L bottles Blow Molding Machine Wide Mouth Candy Jar

Description
How to Order

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Category	Project	YS-3L Jar/Wide Mouth
The Finished Product	The Raw Material	PET
	Volume	3L
	The Theory of Production	800-1600PCS/H
	The Maximum Height	350MM
	The Largest Diameter	115MM
Template Size	Theoretical Output	360*410MM
	Max Mold Thickness	220MM
	Min Mold Thickness	90MM
	Clamping Force	10TKN
	Open Touch the Trip	155MM
The Host Power	Power	8KW
The Oven Power	Voltage / Frequency (three-phase)	380V/50HZ/60HZ
Size	Host	17206501690MM
Size	Oven	17205851370MM
Weight	Host	570KG
Weight	Oven	260KG

Machine Features:

1.Servo motor drive mode, stable performance, energy saving and high efficient,low maintenance
2.The intelligent microcomputer control system is used to ensure the accuracy and stability of the equipment operation and can be customized in French, Russian, Spanish and other operating languages
3.The machine is equipped with automatic alarm (show the cause of the alarm) and intelligent protection devices to easy maintenance and ensure safe operation
4.Non-pause rotation and constant temperature control oven to heat preforms and high speed mold clamping , saving more than 30% energy
5.Modular design saves space and effectively reduces maintenance and parts replacement costs
6.The preform is automatic loaded,the formed bottle is automatically unbottled,without manual taking bottle

Cooperated Brand:

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Frequently Asked Question

Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...

Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.

Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.

Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.

Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)

Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul

Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems

Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)

The ordering process of PET blow molding machines usually includes demand confirmation, technical negotiation, contract signing, payment arrangement, production and delivery, installation and commissioning, and after-sales service. The following are detailed steps:

PET Blow Molding Machine Ordering Process

Phase	Step	Details	Customer Action Required
1. Inquiry	Submit Requirements	Provide bottle specs (size, capacity), material (e.g., rPET), automation needs.	Fill out RFQ form or share technical specs.
	Receive Proposal	Supplier recommends machine type (1-step/2-step), configuration, and quote.	Confirm feasibility & budget.
2. Order Confirmation	Sign Contract	Finalize specs, delivery timeline, payment terms (e.g., 30% deposit).	Pay deposit (typically 30-50%).
	Approve Technical Drawings	Review/approve mold designs or samples (threads, dimensions).	Sign off or request modifications.
3. Production & Testing	Manufacturing	Machine and mold production (lead time: 45-60 days).	Pay milestone payments as scheduled.
	Factory Acceptance Test (FAT)	Witness testing (on-site/video) for output, bottle quality.	Attend or delegate inspection.
4. Delivery & Installation	Shipping	Sea/land transport (packed securely with customs documents).	Handle local logistics/clearance.
	Installation & Training	On-site setup by engineers (5-7 days); operator training.	Provide utilities (power, air, etc.).
5. Acceptance & After-Sales	Final Acceptance	Sign after trial production meets specs (1-2 years warranty).	Pay balance (10-20%).
	After-Sales Support	Lifetime tech support; free spare parts during warranty; 24/7 remote aid.	Share maintenance records.

Notes:

Customization: Special bottle designs or high-speed models may extend lead time.
Eco Options: rPET upgrades/energy-saving features must be stated in the contract.

Need adjustments for specific terms (e.g., Incoterms)? Let me know!
