Fully automatic 2 cavity PET bottle blowing machines for plastic bottle making machine,Leading Blow molding machine ODM service provider

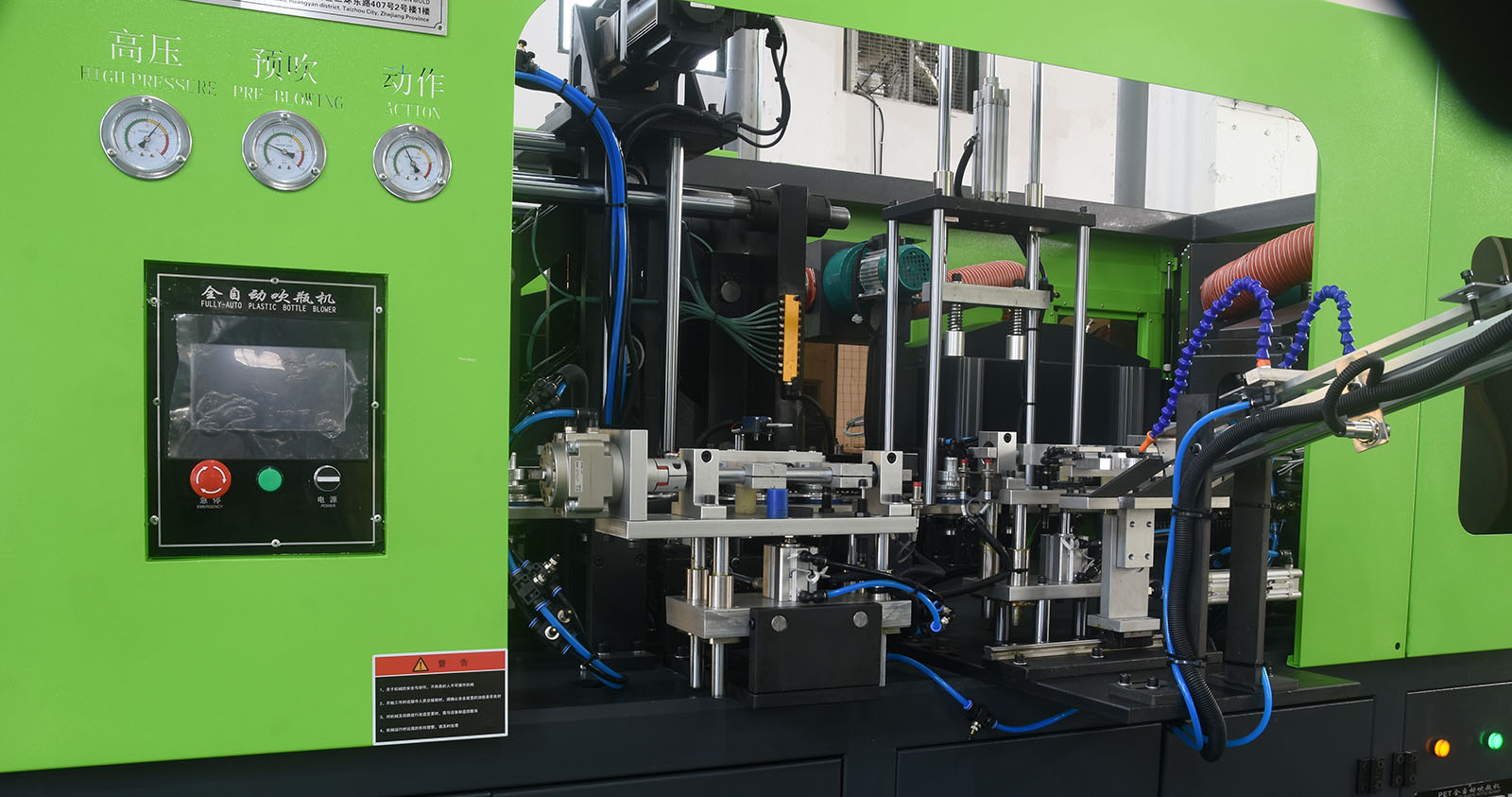

Fully automatic 2 cavity PET bottle blowing machines for plastic bottle making machine

Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Featuring a 2 cavity design, our machine offers unparalleled flexibility. Whether you're producing small or large chemical bottles, our machine can adapt to your specific requirements. Each cavity is carefully constructed to ensure precise and consistent bottle production, leaving no room for compromise.

full-auto pet bottle machine price Water Bottle Blowing Machine pet blow molding machine 2000ML Bottle Blowing moulding Machine

Description
How to Order

Model NO.	YS-A2
Theoretical Output	2000pcs/hr
Max.Bottle Volume	2.0L
Max. Neck Diameter	48mm
Max.Bottle Diameter	100mm
Max.Bottle Height	340mm
Number Of Cavity	2cavity
Total Power	25kw
Use Power	20kw
Motion Pressure	1.0mpa
Blow Pressure	≤3.0mpa
Machine Size	3.2x1.9x2.1m
Machine Weight	2.0T
Preform loader Size	2.0x1.2x2.6m
Preform loaderWeight	0.2T

Machine Features:

1.Servo motor drive mode, stable performance, energy saving and high efficient,low maintenance
2.The intelligent microcomputer control system is used to ensure the accuracy and stability of the equipment operation and can be customized in French, Russian, Spanish and other operating languages
3.The machine is equipped with automatic alarm (show the cause of the alarm) and intelligent protection devices to easy maintenance and ensure safe operation
4.Non-pause rotation and constant temperature control oven to heat preforms and high speed mold clamping , saving more than 30% energy
5.Modular design saves space and effectively reduces maintenance and parts replacement costs
6.The preform is automatic loaded,the formed bottle is automatically unbottled,without manual taking bottle

Cooperated Brand:

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Frequently Asked Question

Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...

Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.

Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.

Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.

Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)

Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul

Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems

Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)

The ordering process of PET blow molding machines usually includes demand confirmation, technical negotiation, contract signing, payment arrangement, production and delivery, installation and commissioning, and after-sales service. The following are detailed steps:

PET Blow Molding Machine Ordering Process

Phase	Step	Details	Customer Action Required
1. Inquiry	Submit Requirements	Provide bottle specs (size, capacity), material (e.g., rPET), automation needs.	Fill out RFQ form or share technical specs.
	Receive Proposal	Supplier recommends machine type (1-step/2-step), configuration, and quote.	Confirm feasibility & budget.
2. Order Confirmation	Sign Contract	Finalize specs, delivery timeline, payment terms (e.g., 30% deposit).	Pay deposit (typically 30-50%).
	Approve Technical Drawings	Review/approve mold designs or samples (threads, dimensions).	Sign off or request modifications.
3. Production & Testing	Manufacturing	Machine and mold production (lead time: 45-60 days).	Pay milestone payments as scheduled.
	Factory Acceptance Test (FAT)	Witness testing (on-site/video) for output, bottle quality.	Attend or delegate inspection.
4. Delivery & Installation	Shipping	Sea/land transport (packed securely with customs documents).	Handle local logistics/clearance.
	Installation & Training	On-site setup by engineers (5-7 days); operator training.	Provide utilities (power, air, etc.).
5. Acceptance & After-Sales	Final Acceptance	Sign after trial production meets specs (1-2 years warranty).	Pay balance (10-20%).
	After-Sales Support	Lifetime tech support; free spare parts during warranty; 24/7 remote aid.	Share maintenance records.

Notes:

Customization: Special bottle designs or high-speed models may extend lead time.
Eco Options: rPET upgrades/energy-saving features must be stated in the contract.

Need adjustments for specific terms (e.g., Incoterms)? Let me know!
