Pet Jar Making Machine/Pet Jar Blow Molding Machine for Honey Jar

The wide-mouth PET blow molding machine is a specialized equipment designed for producing PET containers with large openings (typically 28mm or above), such as food jars, sauce bottles, pharmaceutical containers, and cosmetic packaging. It utilizes two-step (reheat-blow) molding technology to ensure high clarity, excellent strength, and compliance with food-grade safety standards.

Common Applications

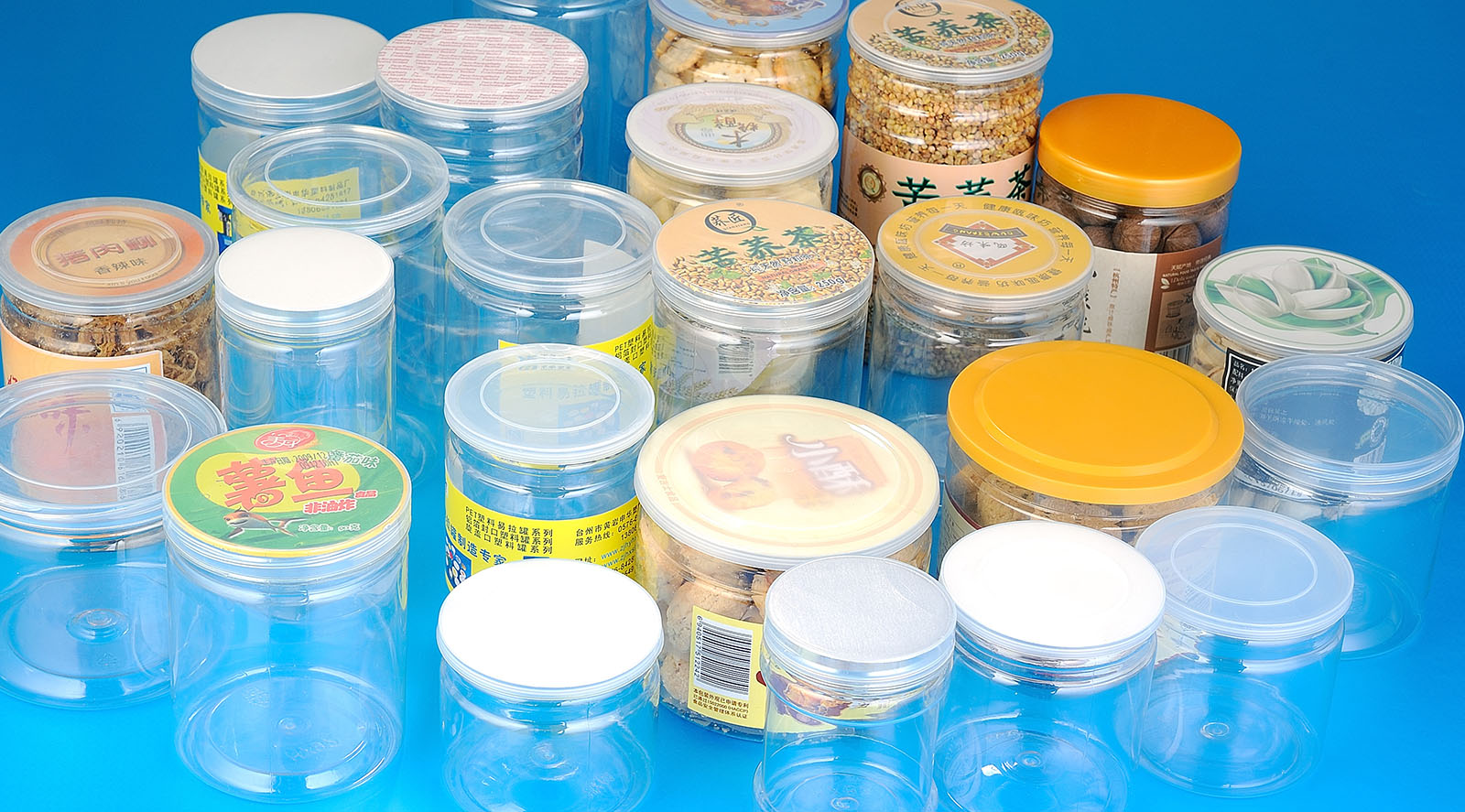

✔ Food Packaging – Sauce jars, honey containers, nut bottles
✔ Cosmetics – Cream jars, lotion bottles, wide-mouth containers
✔ Pharmaceuticals – Medicine bottles, supplement containers
✔ Household Chemicals – Detergent pods, cleaning solution bottles

Food-grade wide-mouth PET bottle blower High-speed automatic PET jar production line Low scrap rate PET blow molder

Description
How to Order

Optimized for Wide-Mouth Bottles
- Special stretch rod and mold design ensures stable neck formation and superior sealing.
- Suitable for 28mm–120mm wide openings (e.g., sauce jars).
High-Precision Control
- Servo-driven + PLC system for precise pressure and temperature adjustment, preventing neck deformation or uneven wall thickness.
- Electronic Wall Thickness Control (EWM) for optimal strength and material savings.
High Efficiency & Stability
- Single or multi-cavity molds available, with outputs of 800–2,500 bottles/hour (depending on bottle design).
- Infrared heating for energy efficiency and minimal PET degradation.
Food-Grade Safety Compliance
- Contact parts made of stainless steel or Teflon coating, meeting FDA & EU 10/2011 standards.
- Optional cleanroom-grade production for pharmaceutical and high-end cosmetic packaging.
High Flexibility & Adaptability
- Produces round, square, and custom-shaped wide-mouth containers.
- Quick mold change system (<30 minutes).
Low Rejection Rate
- Equipped with real-time inspection (vision/weight check) to automatically reject defects, ensuring ≥98% yield.

	item	Jar 2
Bottle type specification	cavity	2
	theoryoutput(PCS/HR)	1500
	Max. volume (L)	5L
	Bottle mouth maximum overall diameter (mm)	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.5kw
	Maximum heating power	48kw
	All electric machine installation	51kw
	actural consumption	35.7kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3400Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10 C
	Consumption	6000kcal/hr
	Frozen water flow	50Ltr/min
Machine specification	Size of the machine	4.7x1.6x1.9 (m)
Machine specification	Weight of the machine	3.0ton

Machine Features:

1.Servo motor drive mode, stable performance, energy saving and high efficient,low maintenance
2.The intelligent microcomputer control system is used to ensure the accuracy and stability of the equipment operation and can be customized in French, Russian, Spanish and other operating languages
3.The machine is equipped with automatic alarm (show the cause of the alarm) and intelligent protection devices to easy maintenance and ensure safe operation
4.Non-pause rotation and constant temperature control oven to heat preforms and high speed mold clamping , saving more than 30% energy
5.Modular design saves space and effectively reduces maintenance and parts replacement costs
6.The preform is automatic loaded,the formed bottle is automatically unbottled,without manual taking bottle

Cooperated Brand:

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Frequently Asked Question

Answer: It depends on the model (single or multi-cavity). Standard machines produce 1,000–5,000 bottles/hour, while high-speed models can reach 10,000+ bottles/hour. We customize solutions based on yo...

Answer: Yes! Our machines support virgin PET and rPET (up to 30–50% recycled content, depending on bottle quality requirements). We optimize heating and blowing for stable performance.

Answer: With our quick mold-change system, switching takes 15–30 minutes (vs. 1–2 hours for traditional machines), minimizing downtime.

Answer: Advanced servo-driven machines save 20–30% energy vs. hydraulic models. For example, a 20-cavity machine consumes ~25–35 kW/h.

Answer: Our machines feature:Precision temperature control (±1°C)Automatic wall thickness adjustmentReal-time defect detection (rejects faulty bottles)

Answer: Regular maintenance includes:Daily: Lubrication, air pressure checksMonthly: Mold cleaning, heater inspectionYearly: Servo motor and hydraulic system overhaul

Answer: Yes! We offer turnkey solutions, including:Preform injection machinesBlow moldersConveyors, labelers, fillersQuality inspection systems

Answer: We provide:1–2 years warranty (core parts)24/7 remote supportOn-site technician dispatch (if needed)

The ordering process of PET blow molding machines usually includes demand confirmation, technical negotiation, contract signing, payment arrangement, production and delivery, installation and commissioning, and after-sales service. The following are detailed steps:

PET Blow Molding Machine Ordering Process

Phase	Step	Details	Customer Action Required
1. Inquiry	Submit Requirements	Provide bottle specs (size, capacity), material (e.g., rPET), automation needs.	Fill out RFQ form or share technical specs.
	Receive Proposal	Supplier recommends machine type (1-step/2-step), configuration, and quote.	Confirm feasibility & budget.
2. Order Confirmation	Sign Contract	Finalize specs, delivery timeline, payment terms (e.g., 30% deposit).	Pay deposit (typically 30-50%).
	Approve Technical Drawings	Review/approve mold designs or samples (threads, dimensions).	Sign off or request modifications.
3. Production & Testing	Manufacturing	Machine and mold production (lead time: 45-60 days).	Pay milestone payments as scheduled.
	Factory Acceptance Test (FAT)	Witness testing (on-site/video) for output, bottle quality.	Attend or delegate inspection.
4. Delivery & Installation	Shipping	Sea/land transport (packed securely with customs documents).	Handle local logistics/clearance.
	Installation & Training	On-site setup by engineers (5-7 days); operator training.	Provide utilities (power, air, etc.).
5. Acceptance & After-Sales	Final Acceptance	Sign after trial production meets specs (1-2 years warranty).	Pay balance (10-20%).
	After-Sales Support	Lifetime tech support; free spare parts during warranty; 24/7 remote aid.	Share maintenance records.

Notes:

Customization: Special bottle designs or high-speed models may extend lead time.
Eco Options: rPET upgrades/energy-saving features must be stated in the contract.

Need adjustments for specific terms (e.g., Incoterms)? Let me know!
