Inside the Factory: How We Ensure Micron-Level Accuracy in Heavy-Duty PET Blow Molding Machinery
In the high-speed world of plastics packaging, a fraction of a millimeter is the difference between a flawless, crystal-clear container and a costly production line stoppage. As global beverage, pharmaceutical, and cosmetic brands push the boundaries of lightweighting and complex bottle geometries, the technical burden shifts entirely onto the machinery.
At YUSHUN MACHINE, we do not just build equipment; we engineer ultra-precise turnkey production systems. Today, we are pulling back the curtain on our manufacturing floor to showcase how we achieve and maintain micron-level accuracy in our heavy-duty PET blow molding machinery—ensuring your investment delivers maximum OEE (Overall Equipment Effectiveness) for decades.
1. Why Micron-Level Precision Matters in PET Blow Molding
Many factory managers ask: "If a plastic bottle expands via compressed air, why does the steel machinery need to be accurate to the micron?"
The answer lies in two critical areas: mould clamping stability and stretching rod synchronization.
- Wall Thickness Distribution: If the stretching rod deviates by even 50 microns from the true center of the preform, the mechanical stretching becomes uneven. During the high-pressure blowing phase (40 bar), the thin-walled sections will over-stretch and weaken, leading to micro-leaks, stress cracking, and structural failure during palletization.
- Parting Line Seams: Heavy-duty, high-output blow molders generate thousands of tons of clamping force per hour. Any structural deflection in the clamping toggles causes the mold halves to micro-gap, resulting in unsightly flash on the bottle's parting line and accelerated mold wear.
2. Structural Rigidity: The Foundation of Precision
Micron accuracy cannot be calibrated into a weak frame. It must be cast into the iron itself.
Heavy-Duty Monoblock Chassis
Every YUSHUN blow molding machine starts with a heavy-duty, stress-relieved monoblock steel chassis. We utilize advanced Finite Element Analysis (FEA) to simulate high-pressure vibration and thermal expansion before a single piece of steel is cut. This guarantees that under continuous, high-speed operation, the machine’s structural deflection remains near zero.
CNC Gantry Machining in a Single Setup
To eliminate cumulative mechanical errors, our main clamping plates and guiding rails are machined using state-of-the-art five-axis CNC gantry milling centers. By boring and milling key alignment points in a single mechanical setup, we eliminate the tolerances that naturally occur when moving parts between different machines.
3. High-Speed Synchronization via Advanced Mechatronics
Achieving a stable mechanical frame is only half the battle; the dynamic moving parts must also operate in absolute harmony.
All-Servo Driven Architecture
Traditional pneumatic or hydraulic stretching systems are highly susceptible to variations in air pressure and oil temperature. YUSHUN’s high-performance PET blow molding machines leverage a fully integrated closed-loop servo system for both mold clamping and preform stretching.
- Precision Control: Our servo motors operate with an encoder resolution that tracks positions down to ±0.01mm.
- Thermal Isolation: By decoupling the heat of the infrared heating oven from the mechanical blowing station, we prevent thermal expansion from altering our micro-machined tolerances.
High-Rigidity Linear Guides
We equip our machinery with oversized, pre-loaded linear guide rails. These guides provide an incredibly low coefficient of friction while maintaining extreme rigidity against lateral forces during the rapid open-and-close cycles of the mold.
4. Quality Control & Metrology: Trust, But Verify
At YUSHUN MACHINE, our quality assurance protocol treats heavy machinery with the same reverence as aerospace manufacturing.
- Laser Interferometer Calibration: We utilize laser interferometry to map the linear travel of our guiding systems, compensating for the slightest geometric deviations across the entire length of the machine bed.
- Dynamic Balancing: All high-speed rotating and reciprocating parts undergo rigorous dynamic balancing to eliminate harmonic vibrations that could degrade mechanical tolerances over time.
- Real-Time Mold Pressure Monitoring: Digital sensors continuously monitor clamping pressure, instantly alerting the PLC if a deviation greater than a few microns is detected, preventing mold damage before it occurs.
5. Your Strategic Partner for Turnkey PET Bottling Solutions
As a specialized, engineering-driven PET blow molding machine factory, YUSHUN MACHINE goes beyond standardized catalogs. We provide tailored, end-to-end solutions that optimize your specific preform designs, production environments, and resin variations.

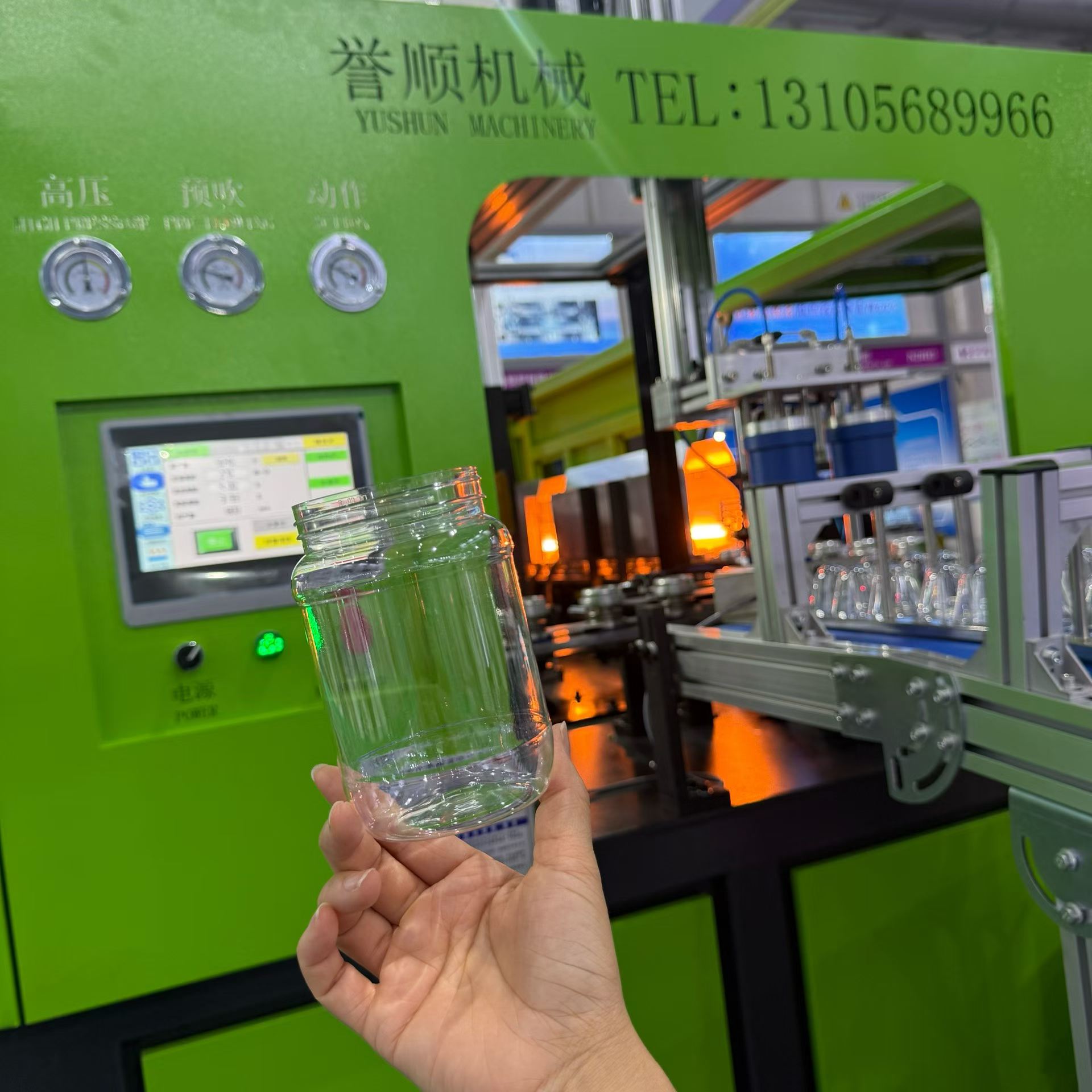

Whether you are producing high-speed mineral water bottles, hot-fill juice containers, or heavy-duty wide-mouth jars, our commitment to micron-level accuracy translates directly to your bottom line: lower scrap rates, reduced energy consumption, and maximum machine uptime.
