Executive Overview
Large-format polyethylene terephthalate (PET) containers, particularly 5-gallon (18.9-liter) water jugs, represent a demanding sector in stretch blow molding (SBM) technology. Achieving structural integrity, uniform wall thickness distribution, crystal-clear optical clarity, and low stress concentration in heavy preforms requires specialized machinery design. This technical article explores the engineering innovations, heating physics, pneumatic control systems, and structural enhancements of Yushun Machine’s updated semi-automatic 5-gallon PET bottle blow molding equipment.
1. Introduction to Large-Format PET Stretch Blow Molding
The global shift from traditional Polycarbonate (PC) to Polyethylene Terephthalate (PET) for 5-gallon water dispenser containers is driven by PET's superior recyclability, cost-effectiveness, chemical safety (BPA-free status), and high tensile strength. However, manufacturing 5-gallon PET bottles presents distinct rheological and thermodynamic challenges compared to standard 500ml beverage bottles:

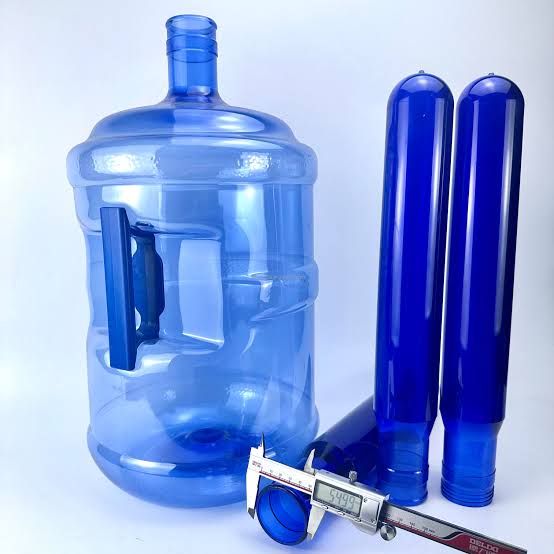

- Preform Mass & Thermal Inertia: A typical 5-gallon PET preform weighs between 600g and 800g with wall thicknesses reaching 8mm to 10mm. Heating such heavy-walled preforms evenly without degrading the outer surface requires precise multi-zone infrared penetration.
- High Stretch Ratios: Achieving structural rigidity across large surface areas demands precise mechanical biaxial orientation (axial stretching combined with radial blowing).
- Base & Neck Integrity: Ensuring the heavy threaded neck profile remains undistorted while the heavy base material settles correctly without stress cracks or drops in drop-test resistance.
2. Advanced Multi-Zone Infrared Preheating System
The heating stage is critical in large-container PET production. Yushun Machine's updated semi-automatic 5-gallon blow molding machine integrates an independent, high-penetration infrared preheater tailored specifically for heavy preforms.
Key Thermal Engineering Features:
- Layered Zone Control: Equipped with multi-segment micro-processor controlled IR heating zones. Each zone independently regulates the temperature across the preform length (neck transition, body, and base section).
- Rotational Uniformity: Preforms continuously rotate at constant controlled speeds while passing through the heating tunnel, eliminating thermal gradients across the preform circumference.
- Active Air-Cooling & Neck Protection: Integrated cooling fans and localized air ventilation shield the bottle neck threads from deformation caused by radiant heat, ensuring zero leakages upon capping.
- Thermal Equilibrium Delay: Designed thermal equalization zones allow heat to penetrate into the core of thick preform walls (8-10mm) without scorching the exterior polymer layer.
3. High-Precision Pneumatic & Stretch Molding Mechanics
The mechanical conversion of a hot preform into a finished 5-gallon container requires synchronized mechanical stretching and dual-stage pneumatic blowing (low-pressure pre-blowing and high-pressure main blowing).
| Engineering Parameter | Yushun Machine Technical Specification | Operational Benefit |
|---|---|---|
| Target Container Volume | 3 Gallon to 5 Gallon (11.3L – 18.9L) | Versatile production for commercial water lines |
| Preform Weight Range | 600g – 800g PET Preforms | Accommodates standard and heavy-duty jug specs |
| Clamping Force Mechanism | High-Pressure Toggle / Hydropneumatic Lock | Eliminates parting line flash under 30-35 bar pressure |
| Stretching Mechanism | Pneumatic / Servo-Assisted Stretch Rods | Ensures uniform longitudinal polymer orientation |
| Blowing Pressure Range | Low (8-10 bar) / High (30-35 bar) Dual Air Line | Optimized detail formation and bottom petaloid clarity |
| Output Capacity | 80 – 120 Bottles per Hour (per cavity) | Cost-efficient production for mid-size water plants |
4. Structural Rigidity, Safety, and User-Centric Ergonomics
Designed as a robust, semi-automatic turn-key unit, Yushun Machine's 5-gallon blow molding system balances high performance with easy operator interaction:
- Heavy-Duty Machine Frame: Built with high-grade structural steel and anti-vibration footings, absorbing high-pressure clamping dynamics and ensuring a lifespan exceeding 10+ years.
- Pneumatic Components: Powered by internationally recognized pneumatic valves, cylinders, and filtration units (e.g., Festo, Airtac, or Parker configurations) for rapid response times and consistent operational stability.
- Dual Hands Safety Button: Built-in operator protection requiring two-hand simultaneous initiation to start the clamping and blowing cycle, eliminating risks during manual preform loading and bottle retrieval.
- Intelligent PLC Touchscreen Interface: Programmable Logic Controller (PLC) with multi-language support allows real-time adjustment of blowing time, stretch speed, clamping pressure, and heating profile memory stores for quick mold changeovers.
5. Complete PET Turnkey Solutions by Yushun Machine
At Yushun Machine (www.yushunmachine.com), we do not merely supply stand-alone machinery; we deliver complete end-to-end PET bottle production solutions. For water bottling plants and packaging companies seeking seamless integration, Yushun provides:
- Custom Preform & Mold Design: Precision-machined 5-gallon preform molds and bottle blow molds customized for optimized bottle weight, handle integration, and top-load strength.
- High-Pressure Air Auxiliary Systems: Fully matched low & high-pressure air compressors, refrigerated air dryers, precision oil-water separators, and air storage tanks.
- Chiller Systems: Water chillers engineered to maintain optimal mold cooling temperatures, preventing cycle delays and ensuring rapid cycle times with crisp bottle release.
