YUSHUN One-Step Blow Molding Machine – Integrated Injection Stretch Blow, Save Time & Labor
YUSHUN is a professional manufacturer of blow molding machines, offering advanced solutions for the global PET bottle packaging industry. Our one-step injection stretch blow molding (ISBM) machine represents a significant leap forward in production efficiency, integrating the entire bottle manufacturing process—from raw material to finished container—into a single, streamlined operation . By eliminating the separate preform injection step and the need for preform storage and reheating, the YUSHUN one-step machine saves time, reduces labor requirements, and delivers consistent, high-quality bottles with exceptional efficiency.
What Is One-Step Injection Stretch Blow Molding?
Injection stretch blow molding (ISBM) is the dominant process for manufacturing high-quality PET bottles, forming hollow plastic containers by first injection-molding a preform, then axially stretching and blowing it in a cooled mold to create a biaxially oriented container . Biaxial orientation significantly improves clarity, stiffness, and gas barrier properties, making ISBM the standard for modern PET beverage packaging .
The one-step ISBM process takes this technology further by performing all stages—injection, temperature conditioning, stretching, and blowing—on a single machine . Unlike two-step processes where preforms are cooled, stored, and later reheated for blowing, the YUSHUN one-step machine uses the residual heat from the injection stage for the subsequent stretch blow process. This integration eliminates multiple handling steps, reduces energy consumption, and ensures superior product consistency.
How the YUSHUN One-Step Process Works
The YUSHUN one-step blow molding machine operates through a fully integrated, multi-station process that transforms raw PET material into finished bottles in one continuous cycle .
Station 1: Injection Molding
Raw PET material is fed into the injection unit, where it is melted and injected into preform cavities using precision hot runner technology. Preforms are molded to exact specifications, with the neck finish formed to its final dimensions during this stage .
Station 2: Temperature Conditioning
Rather than cooling the preforms completely, the YUSHUN one-step machine carefully conditions the preforms to the optimal temperature profile for stretching and blowing. The residual heat from the injection stage is retained, eliminating the need for energy-intensive reheating.

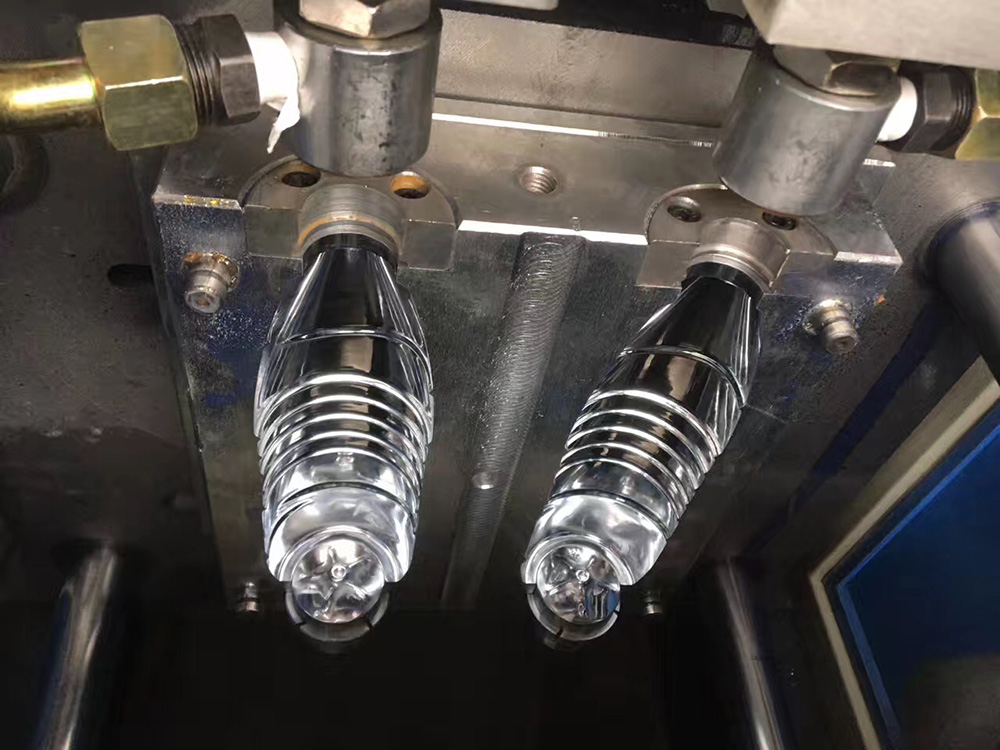

Station 3: Stretch Blow Molding
The conditioned preform is transferred to the blow mold station, where a stretch rod extends the preform axially while high-pressure air expands it radially against the cooled mold walls . This biaxial stretching creates molecular orientation that significantly enhances bottle strength, clarity, and barrier properties .
Station 4: Ejection
The finished bottle is cooled, and the mold opens to eject the completed container. The cycle then repeats, with the rotary or indexing mechanism advancing all stations simultaneously for continuous production .
Save Time: Streamlined Production Process
Elimination of Separate Preform Production
Traditional two-step processes require preforms to be injection-molded on separate machines, then cooled, stored, transported, and reheated before blowing. Each of these steps adds time, labor, and potential quality risks. The YUSHUN one-step machine eliminates these intermediate stages entirely.
Continuous, Integrated Operation
The four stations operate simultaneously in a continuous cycle. While one set of preforms is being injected, another is being conditioned, a third is being blown, and finished bottles are being ejected. This parallel operation maximizes throughput and minimizes idle time.
No Preform Storage or Handling
Because preforms are used immediately after injection, there is no need for preform storage racks, handling equipment, or inventory management. Bottles are produced directly from raw material on demand, reducing work-in-progress inventory and associated carrying costs.
Shorter Time-to-Bottle
The time from raw material to finished bottle is dramatically reduced compared to two-step processes. With no cooling, storage, or reheating phases, the YUSHUN one-step machine delivers finished containers in minutes rather than days or weeks.
Save Labor: Reduced Operator Requirements
Fully Integrated Automation
The YUSHUN one-step machine is fully automatic from hopper to finished bottle. Once the machine is set up and production parameters are loaded, the entire process runs without manual intervention. One operator can easily manage multiple machines.
No Preform Handling Labor
Two-step processes require labor for preform unloading, inspection, packaging, storage retrieval, and loading into reheating ovens. The YUSHUN one-step machine eliminates all of these labor-intensive tasks.
Simplified Quality Control
Because the entire process is integrated, quality monitoring is centralized. One operator can oversee injection parameters, conditioning temperatures, and blow molding conditions from a single control interface, reducing the need for multiple quality control personnel.
Reduced Training Requirements
Operating a single integrated machine requires less specialized training than managing separate injection molding and blow molding operations. The YUSHUN one-step machine's user-friendly PLC interface simplifies setup, monitoring, and changeover.
Energy Efficiency: Lower Operating Costs
Utilization of Residual Heat
The most significant energy advantage of the one-step process is the use of residual heat from injection for the blow molding stage . Unlike two-step processes that cool preforms completely then reheat them, the YUSHUN one-step machine maintains preform temperature throughout the cycle, saving substantial energy.
No Reheating Ovens
Two-step systems require long infrared heating ovens to bring cooled preforms back up to blowing temperature. These ovens consume significant electricity and take up valuable floor space. The YUSHUN one-step machine eliminates reheating ovens entirely .
Energy Savings Compared to Two-Step
Industry data indicates that one-step and 1.5-step systems can achieve up to 20% lower energy consumption compared to equivalent two-step systems . By eliminating the energy waste of cooling and reheating, the YUSHUN one-step machine delivers bottles with a significantly lower carbon footprint.
Hybrid-Electric Efficiency
YUSHUN one-step machines incorporate advanced hybrid-electric drive systems, using servo motors for precise, energy-efficient motion control . Servo-driven systems consume less energy, operate more quietly, and provide finer control than traditional hydraulic systems.
Superior Bottle Quality
Consistent Preform Temperature
By maintaining consistent thermal conditions from injection through blowing, the YUSHUN one-step machine eliminates the temperature variations that can occur when preforms are cooled, stored, and reheated. Consistent preform temperature translates to uniform wall thickness and superior bottle clarity.
No Preform Damage or Contamination
Preforms are never handled, stored, or transported between processes, eliminating risks of scratching, dust contamination, or moisture absorption that can degrade bottle quality.
Complete Process Control
With the entire production cycle on a single machine, all parameters are controlled from one interface. Operators can fine-tune injection, conditioning, and blowing settings to achieve optimal results for each bottle design.
Precision Neck Finish
The neck finish is injection-molded to final dimensions and never reheated, ensuring perfect thread profiles and sealing surfaces for reliable capping performance.
Compact Footprint
Space-Efficient Design
The YUSHUN one-step machine integrates all four process stations into a single, compact frame. Compared to separate injection molding and blow molding systems with preform storage, the one-step machine occupies significantly less floor space.
No Preform Storage Area
Two-step processes require dedicated storage space for preform inventory. The YUSHUN one-step machine eliminates this requirement entirely, freeing valuable factory floor space for other uses.
Production Line Simplification
With no need for preform handling equipment, conveyors, or reheating ovens, the YUSHUN one-step machine simplifies factory layout and reduces material handling distances.
Applications
The YUSHUN one-step blow molding machine is suitable for a wide range of bottle applications:
Small to Medium Volume Production
The one-step process is ideal for applications where production volumes do not justify the complexity and space requirements of two-step systems . For startups, specialty products, and contract packagers, the YUSHUN one-step machine provides an efficient, cost-effective solution.
Wide-Mouth Jars and Specialty Shapes
The one-step process excels at producing wide-mouth containers and complex bottle geometries that can be challenging for two-step systems . The precise control over preform conditioning enables unique shapes and designs.
High-Value and Pharmaceutical Applications
For applications requiring the highest levels of cleanliness and quality consistency, the closed, integrated one-step process minimizes contamination risks . Pharmaceutical, medical, and high-end cosmetic containers benefit from the one-step approach.
Multi-Material Capability
YUSHUN one-step machines can process various materials including PET, rPET, HDPE, PP, and specialty resins for diverse packaging needs.
Comparison: One-Step vs Two-Step
| Factor | YUSHUN One-Step | Two-Step Process |
|---|---|---|
| Preform Production | Integrated in same machine | Separate injection machine required |
| Preform Storage | Not required | Storage space and handling needed |
| Reheating | Uses residual heat, no oven | Requires reheating oven |
| Energy Consumption | Lower (residual heat utilization) | Higher (cool then reheat) |
| Floor Space | Compact, integrated design | Larger, multiple machines |
| Labor Requirement | One operator can manage multiple machines | Separate operators for injection and blowing |
| Preform Handling | None | Multiple handling steps |
| Contamination Risk | Minimal | Higher from handling and storage |
| Changeover Time | Moderate | Quicker for preform-based systems |
| Best For | Small to medium volume, specialty shapes, high quality | High volume, dedicated production |
Quality Assurance
Every YUSHUN one-step blow molding machine undergoes rigorous testing before delivery. Our quality assurance process includes:
Injection system calibration for consistent preform weight and dimensions
Temperature conditioning validation to ensure proper thermal profiles
Blow molding system testing to verify bottle quality and cycle times
Control system verification to confirm all automation functions operate correctly
Technical Support and Service
When you choose YUSHUN, you gain a partner committed to your success:
Installation guidance for proper setup and integration
Operator training to ensure your team can maximize machine capabilities
Technical support for troubleshooting and process optimization
Spare parts availability for ongoing maintenance needs
Conclusion
The YUSHUN one-step injection stretch blow molding machine offers an integrated, efficient solution for bottle manufacturers seeking to save time, reduce labor, and improve quality. By combining injection, conditioning, stretch blow, and ejection into a single, continuous process, the YUSHUN one-step machine eliminates the inefficiencies of separate preform production and handling. With lower energy consumption, reduced labor requirements, and superior bottle quality, the YUSHUN one-step machine is an ideal choice for businesses ranging from startups to established producers.
Contact YUSHUN today to discuss your bottle production requirements and learn how our one-step blow molding machine can help you save time, labor, and energy.
