PET Plastic Bottle Forming Molds: Multi-Cavity Modular Layout for Flexible Production Capacity
YUshun Machinery: Professional Manufacturer of Blow Molding Machines
YUshun Machinery is a leading manufacturer and supplier of high-performance blow molding solutions for the global packaging industry. Specializing in the design and production of advanced blow molding equipment, we provide comprehensive, integrated solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art machinery that enables customers to produce high-quality plastic bottles and containers efficiently and cost-effectively.
PET Plastic Bottle Forming Molds: Multi-Cavity Modular Layout for Flexible Production Capacity

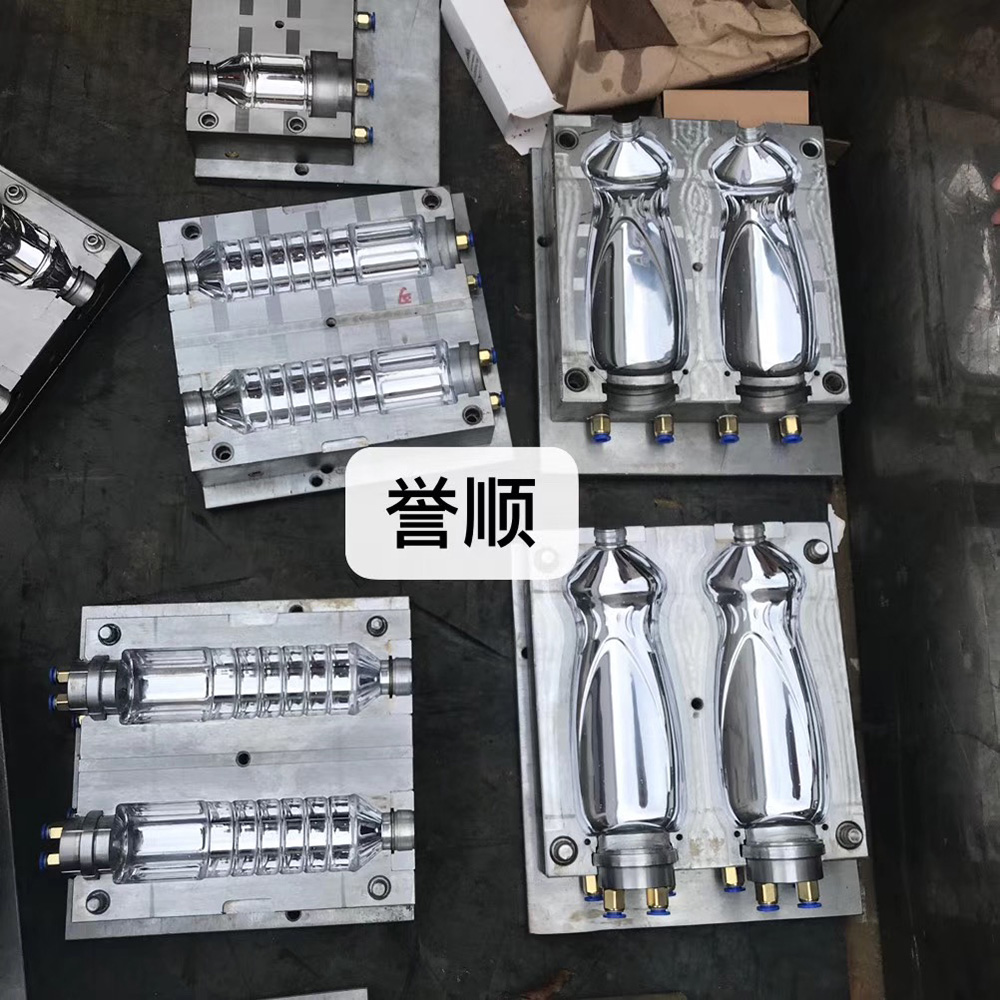

YUshun Machinery proudly presents our PET Plastic Bottle Forming Molds—precision-engineered tooling solutions designed specifically for the efficient production of high-quality PET bottles. Our molds feature a multi-cavity modular layout that offers exceptional flexibility, allowing manufacturers to adapt production capacity to meet varying market demands . Whether you require small-scale specialty production or high-volume mass manufacturing, our modular mold systems deliver consistent quality, rapid changeover, and optimized performance.
Key Features
1. Modular Multi-Cavity Design
Our innovative modular mold system provides unparalleled production flexibility:
Interchangeable cavity modules allowing quick configuration changes between 1 to 12 cavities
Scalable production capacity – easily add or remove cavity modules to match demand fluctuations
Reduced downtime – module swaps completed in minutes, not hours
Standardized interfaces ensuring consistent performance across all configurations
2. Flexible Cavity Configurations
YUshun molds accommodate a wide range of production requirements:
| Cavity Count | Ideal Application | Typical Output |
|---|---|---|
| 1-2 cavities | Small-scale production, prototype development, specialty bottles | 400-1,200/hour |
| 3-4 cavities | Medium-volume production, regional bottlers | 1,200-2,500/hour |
| 5-8 cavities | High-volume production, established operations | 2,500-6,000/hour |
| 9-12 cavities | Maximum-output operations | 6,000-12,000/hour |
3. Precision Mold Engineering
Our forming molds are manufactured to exacting standards:
High-precision cavity machining with micron-level accuracy ensuring consistent bottle dimensions
Superior surface finish – mirror-polished cavity interiors for exceptional bottle clarity
Uniform wall thickness distribution critical for bottle strength and appearance
Optimized venting systems preventing trapped air and ensuring complete material filling
4. Quick-Change Capability
The modular design enables rapid production changeovers:
Standardized base plate accommodating all cavity modules
Tool-less module locking system for fast, secure installation
Pre-aligned interfaces eliminating recalibration between changeovers
Changeover time as low as 15-30 minutes for complete configuration swaps
5. Advanced Cooling System
Efficient cooling is essential for fast cycle times and consistent bottle quality:
Integrated cooling circuits within each cavity module ensuring uniform temperature distribution
Modular cooling connections for quick attachment/detachment during changeovers
Optimized channel design maximizing heat extraction for faster cycles
Cycle times optimized based on cavity configuration and bottle specifications
6. Robust Construction
Built for long-term reliability in demanding production environments:
Premium mold steel (S136, H13, P20 options) ensuring extended service life
Corrosion-resistant materials suitable for high-moisture production environments
Hardened wear surfaces on all moving components
Mold life: Engineered for 3-5+ million cycles with proper maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Cavity Configuration | 1-12 cavities, modular expandable |
| Bottle Volume Range | 0.1L - 2L standard, up to 5L options |
| Maximum Bottle Height | 330mm |
| Maximum Bottle Diameter | 120mm |
| Neck Finish Options | PCO 1810, PCO 1881, 28mm, 38mm, custom sizes |
| Mold Material Options | S136, H13, P20 steel |
| Cooling System | Integrated modular cooling circuits |
| Changeover Time | 15-30 minutes |
| Mold Life | 3-5+ million cycles |
Applications Across Industries
Beverage Industry
Bottled water (still and sparkling)
Carbonated soft drinks
Juices and sports drinks
Tea and functional beverages
Food Packaging
Edible oils and cooking oils
Sauces and condiments
Food-grade containers
Pharmaceutical and Healthcare
Liquid medication bottles
Healthcare product packaging
Personal Care and Cosmetics
Shampoo and conditioner bottles
Lotion and cream containers
Cosmetic packaging
Household Products
Detergent and cleaning solution bottles
Household chemical containers
Quality Assurance
Every YUshun bottle forming mold undergoes rigorous quality testing before shipment:
Precision machining verification using CMM inspection
Cooling circuit testing confirming proper flow and leak-free operation
Sample bottle production for customer approval
Dimensional verification ensuring consistent bottle specifications
Detailed documentation including maintenance guides and spare parts lists
Why Choose YUshun for Bottle Forming Molds?
Modular flexibility: Multi-cavity modular layout adapting to diverse production needs
Scalable capacity: Easy configuration changes from 1 to 12 cavities
Quick changeover: 15-30 minute module swaps minimizing downtime
Precision engineering: High-quality molds ensuring consistent bottle quality
Robust construction: Premium materials for extended service life
Versatile applications: Suitable for beverage, food, pharmaceutical, and personal care industries
Comprehensive support: Design consultation, installation guidance, and after-sales service
Partner with YUshun for Flexible Bottle Forming Solutions
YUshun Machinery's PET Plastic Bottle Forming Molds with multi-cavity modular layout represent the ideal solution for manufacturers seeking flexible, scalable production capacity. By combining precision engineering, quick-change capability, and robust construction, we help our customers adapt to changing market demands while maintaining consistent product quality.
Contact YUshun Machinery today to discuss your bottle forming mold requirements and discover how our modular solutions can enhance your manufacturing operations.
